Standard Package Rs.1899/Sft
Consultancy Services @ Free of Cost
1. Government Licensing Assistance:
BBMP
Building Sanction Plan Approval
BESCOM
Approval
BWSSB
Approval
2. Architectural Designs:
Architectural Plan
3D Elevation

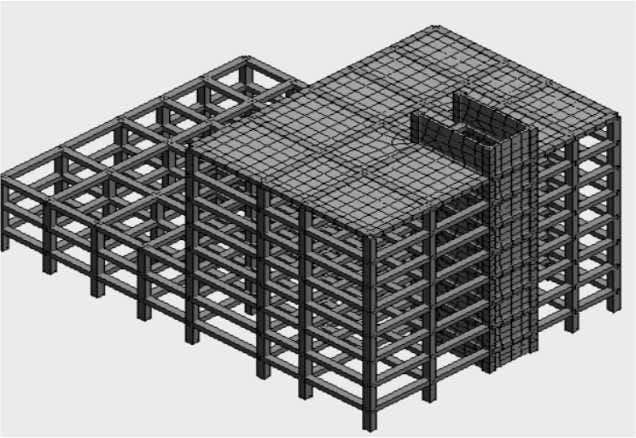

Structural Design

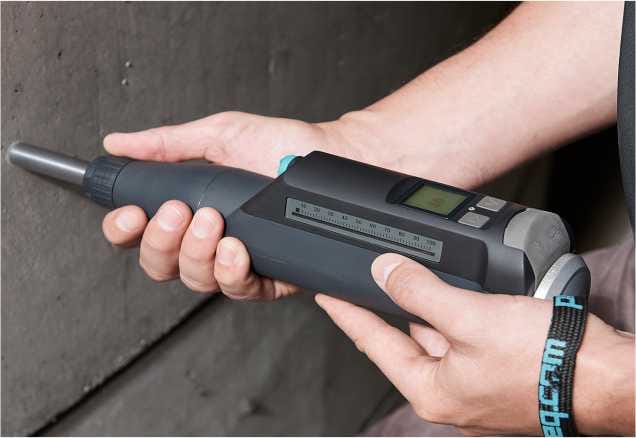

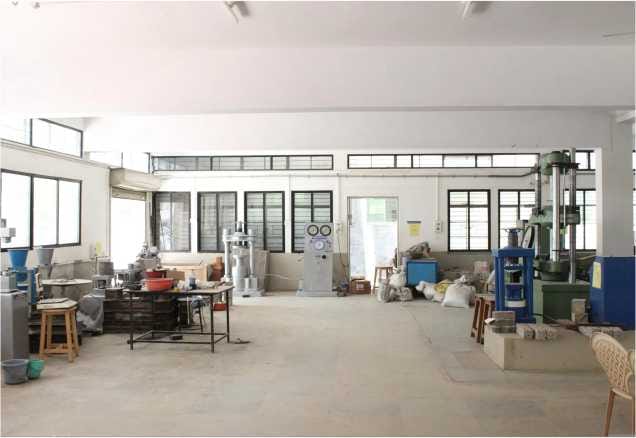

3. Quality Test Report:
Pre-Construction
Quality Test
Post-Construction
Quality Test

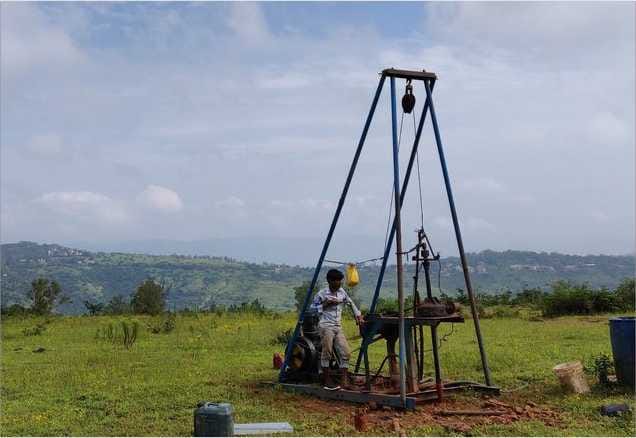

Safe Bearing Capacity of Soil
(SBC Test)
4. Project Planning And Management:

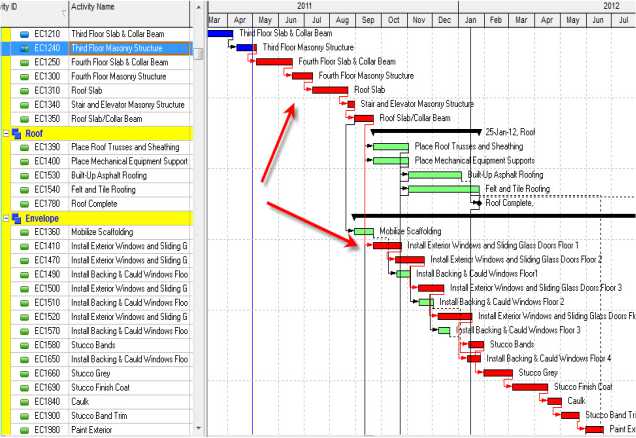

Critical Path Method Chart
Project Status Monitoring
by Rafco App
Project Daily Updates
by WhatsApp
Civil Construction Work
5. Structural Work:

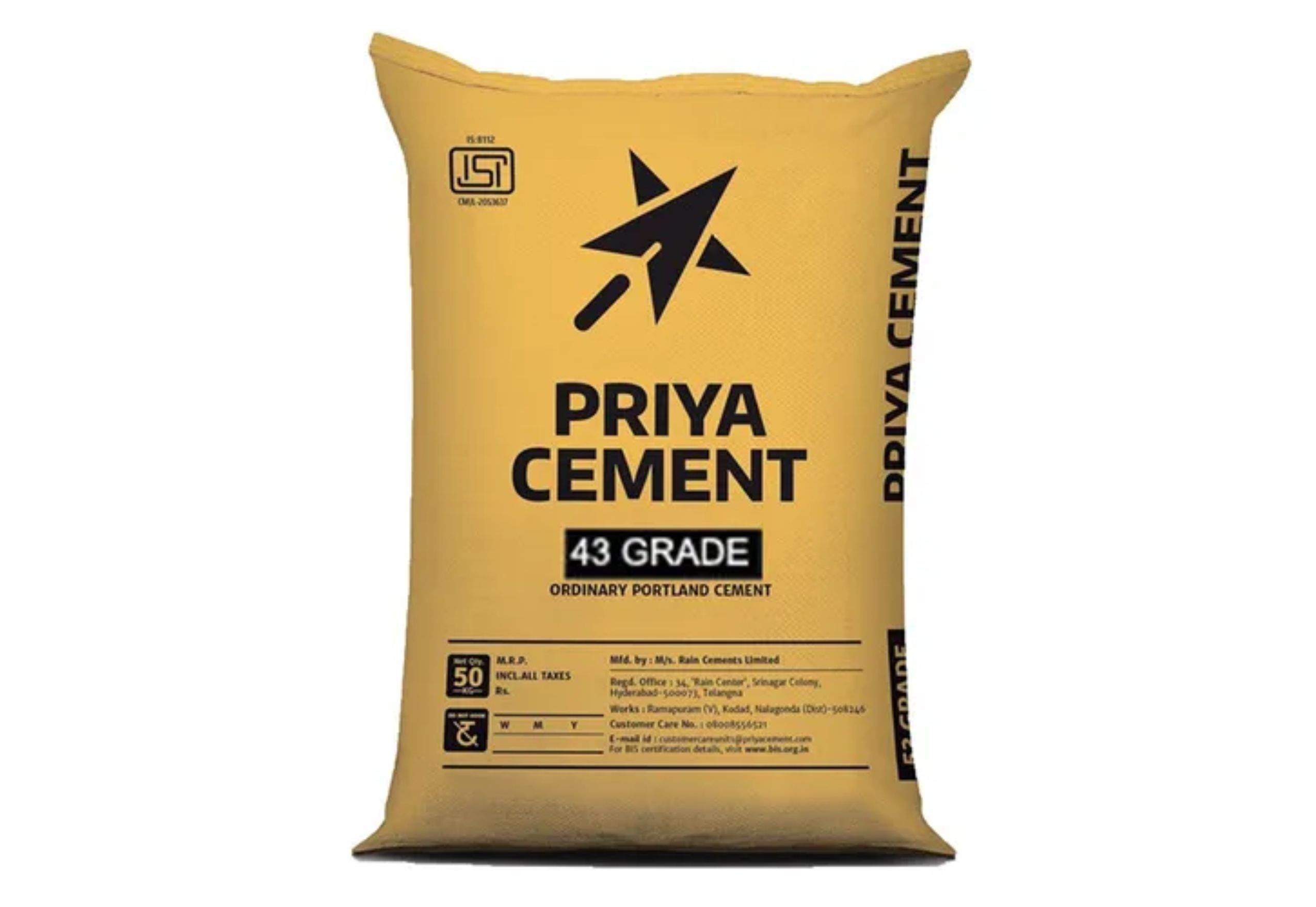

Cement: PRIYA/MAHA Cement for all RCC works and Masonry work

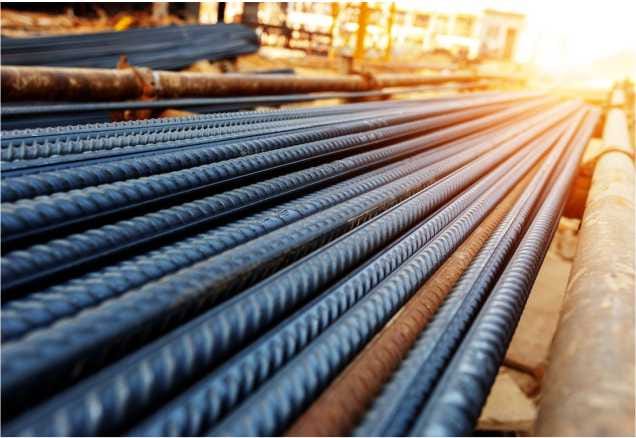

Steel: Gopala-TMT Fy550

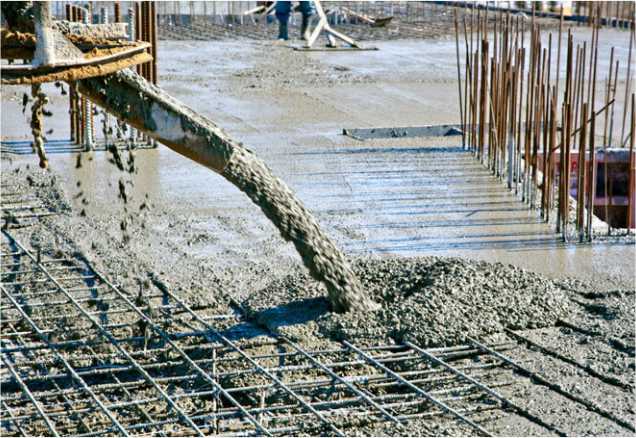

Grade of Concrete: M-20
RCC Structural work
Solid Block masonry with good quality block of 6” thick for Outer and inner wall”

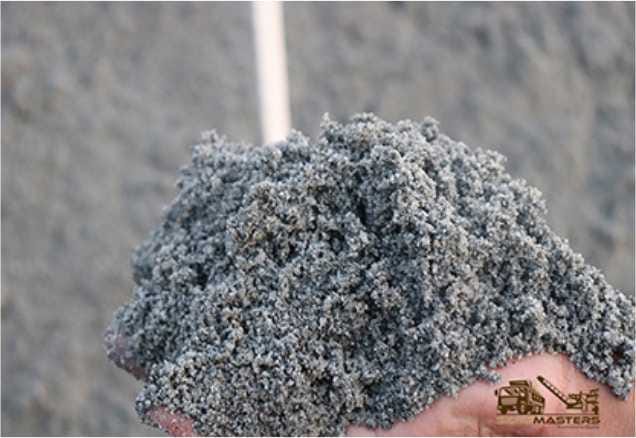

M-Sand for all RCC works, Masonry Block work, and P-Sand for Plastering

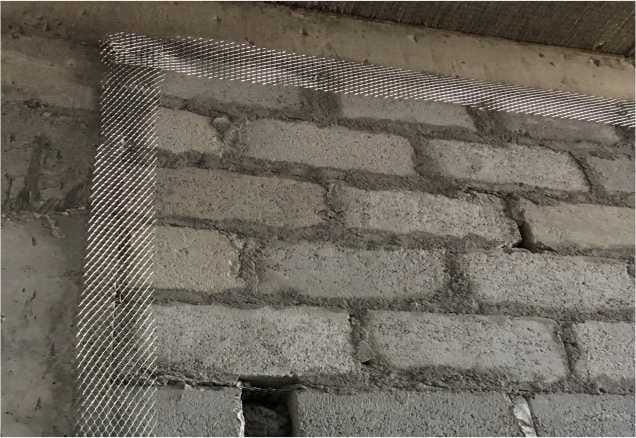

Chicken mesh is provided for all joint between RCC and Masonry works

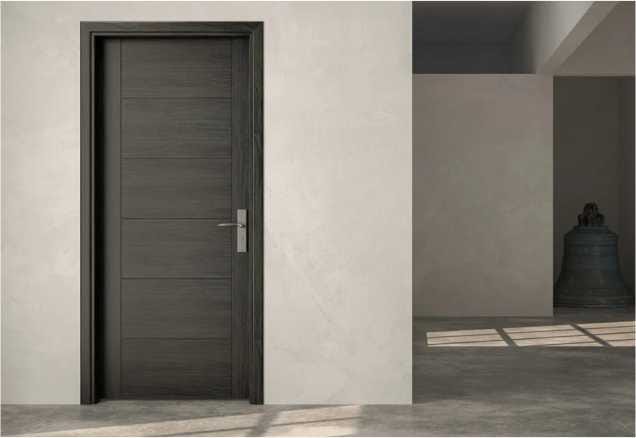

6. Doors:

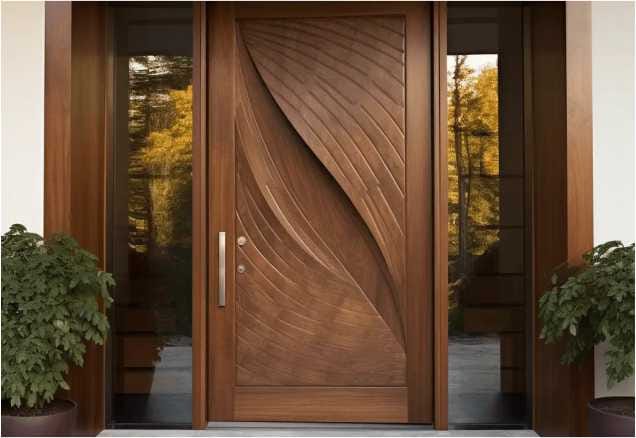

Main Door: Ghana Teak wood door frame of 5”X3” section, with 32mm thick Ghana Teak wood door Shutters with Brass fittings
Internal doors: Red Sal wood door frame of 5” x 3” section, with 32mm Pine wood door Shutters

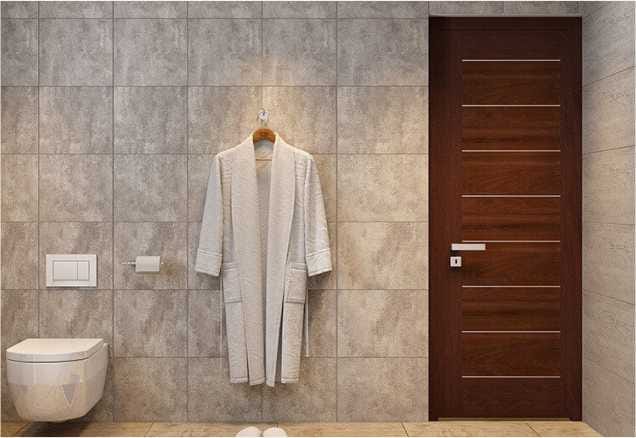

Toilet doors: Red Sal wood door frame of 5”X3” section, with 32mm thick Pine wood door Shutters
7. Windows:

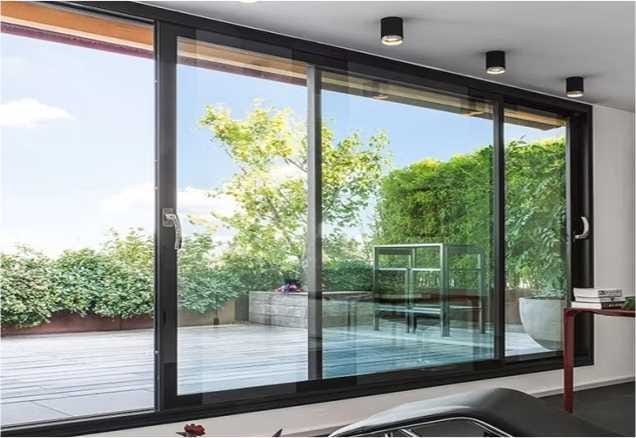

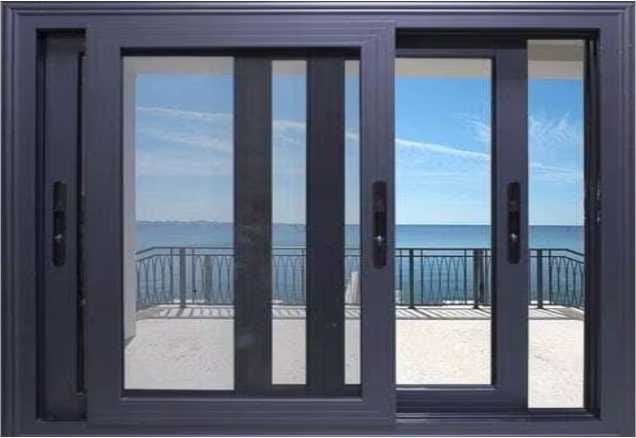

Balcony Sliding Door & Windows:
UPVC 90mm Frame
(Basic price up to Rs. 300/Sft.)
Windows: 90mm UPVC frames, 3 trace windows (2 glass + 1 mosquito net).
(Basic price up to Rs. 300/Sft.)

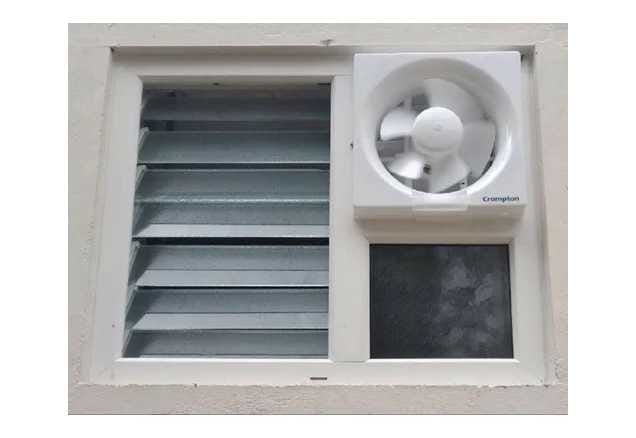

Ventilators: UPVC including Exhaust Fan provision for Bathroom and Kitchen
(Basic price up to Rs. 250/Sft.)

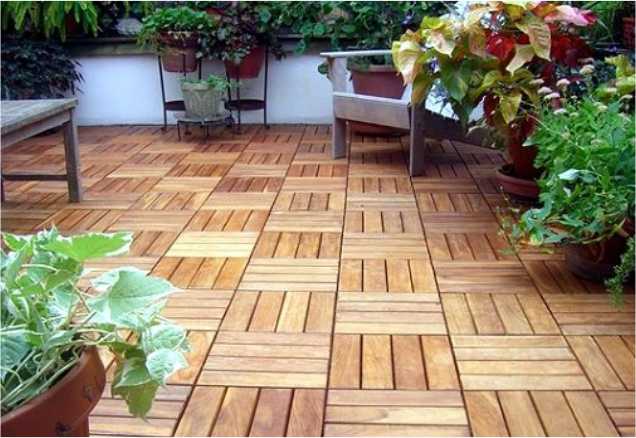

8. Flooring:

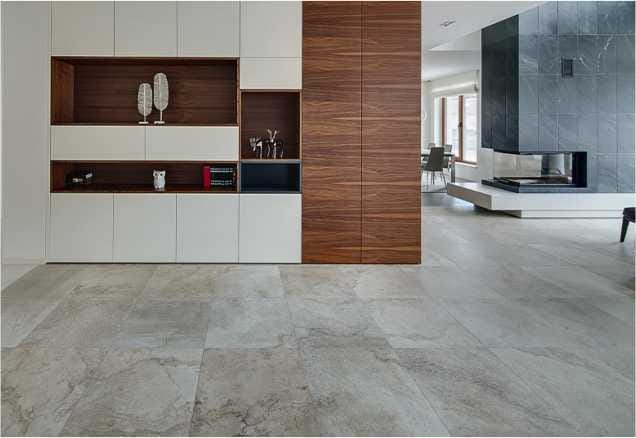

Living Room, Bed room, Kitchen and Dining: Vitrified tiles of size 4' X 2'
(Basic price up to Rs. 40/sft.)

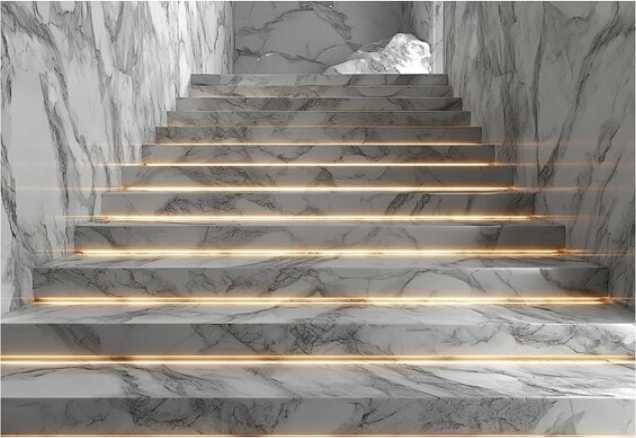

Stair Case: Granite
(Basic price up to Rs. 80/Sft.)
Balcony, Toilet, Sit out: Anti-skid
tiles of size 2'X2'.
(Basic price up to Rs. 40/Sft.)

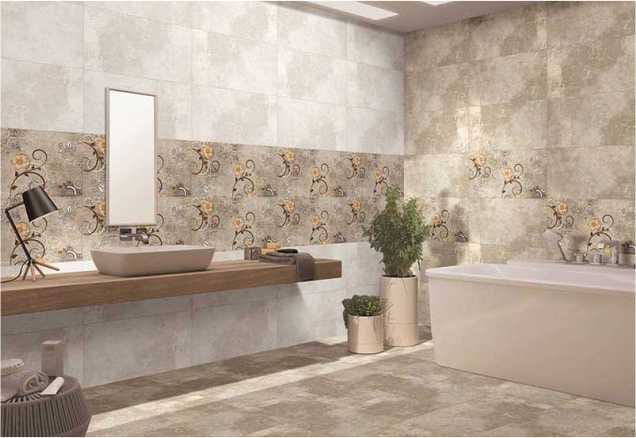

Toilet wall: Vitrified tiles Dadooing of size 4'X2', up to Ceiling level.
(Basic price up to Rs. 40/Sft)

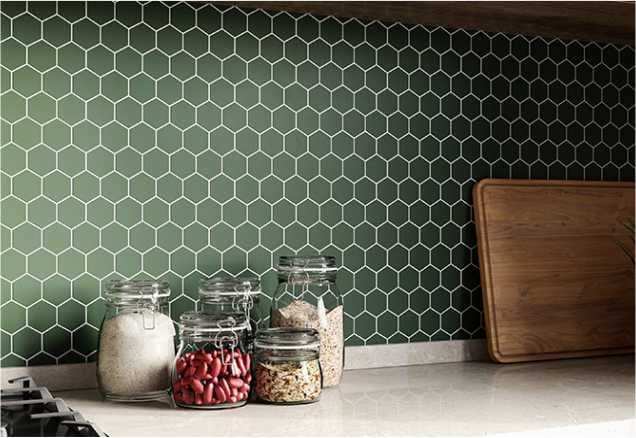

Kitchen wall Dado: Glazed tiles Dado
up to Lintel level
(Basic price up to Rs. 40/Sft.)

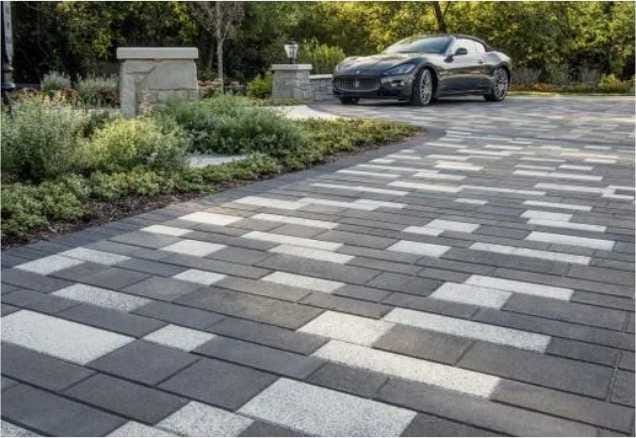

Parking Tiles: Anti-skid tiles for
Parking area, Stilt floor
(Basic price up to Rs. 40/Sft.)

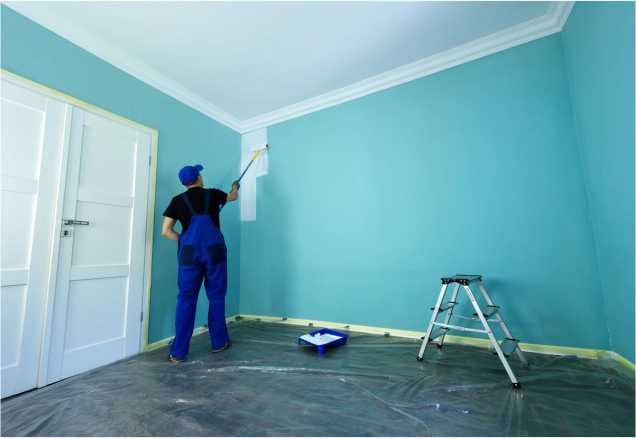

9. Painting:
Internal walls: 2 coats of Asian Suprema putty, 1 coat of Trucare Interior wall Primer 2 coat of Tractor Shine Paints.
(Brand: Asian/berger/dulux)
10. Water proofing works:

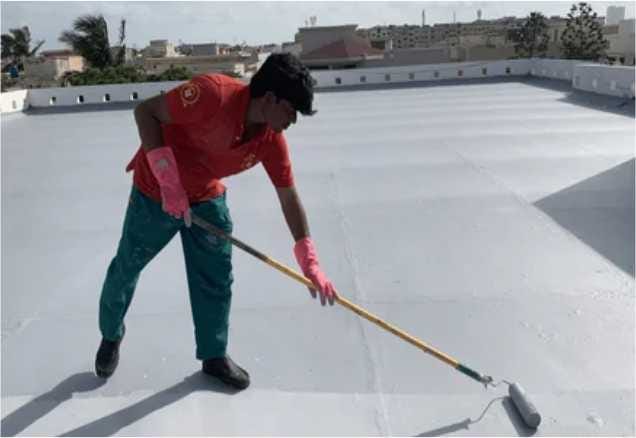

Terrace Floor:
Weather proof course (WPC) using
Asian/Roffe /Fosroc Water Proof Compound.
External walls:
1 coat of Trucare Exterior wall Primer
2 coats of Ace Exterior paints.
(Brand: Asian/berger/dulux)

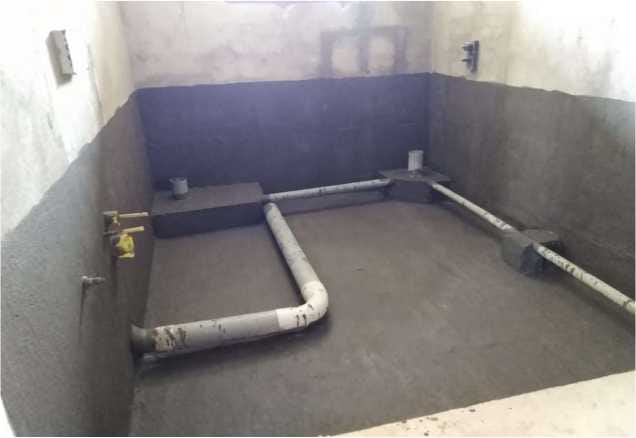

Bath rooms Floors:
Water Proofing using Asian/Roffe /Fosroc Water Proof Compound
M.E.P Works
11. Mechanical Fabrication

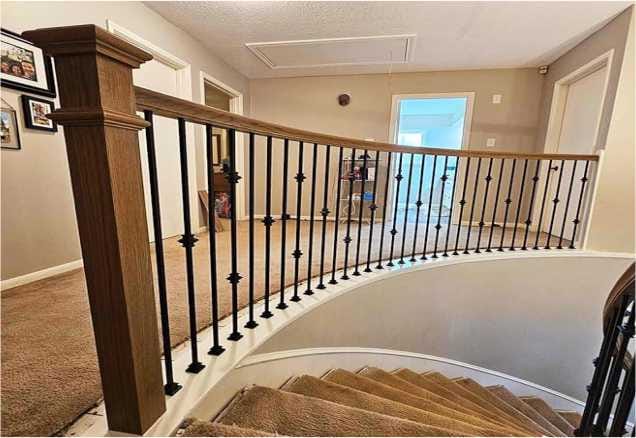

External Staircase and Balconies with
M S Railing using 16 gauge
(Basic price up to Rs.220/sft)

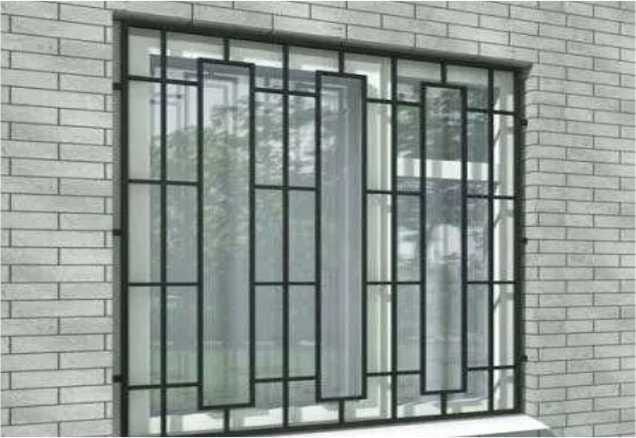

Window grills: 12mm M S Bright square rod including enamel paint
(Basic price up to Rs.180/sft)

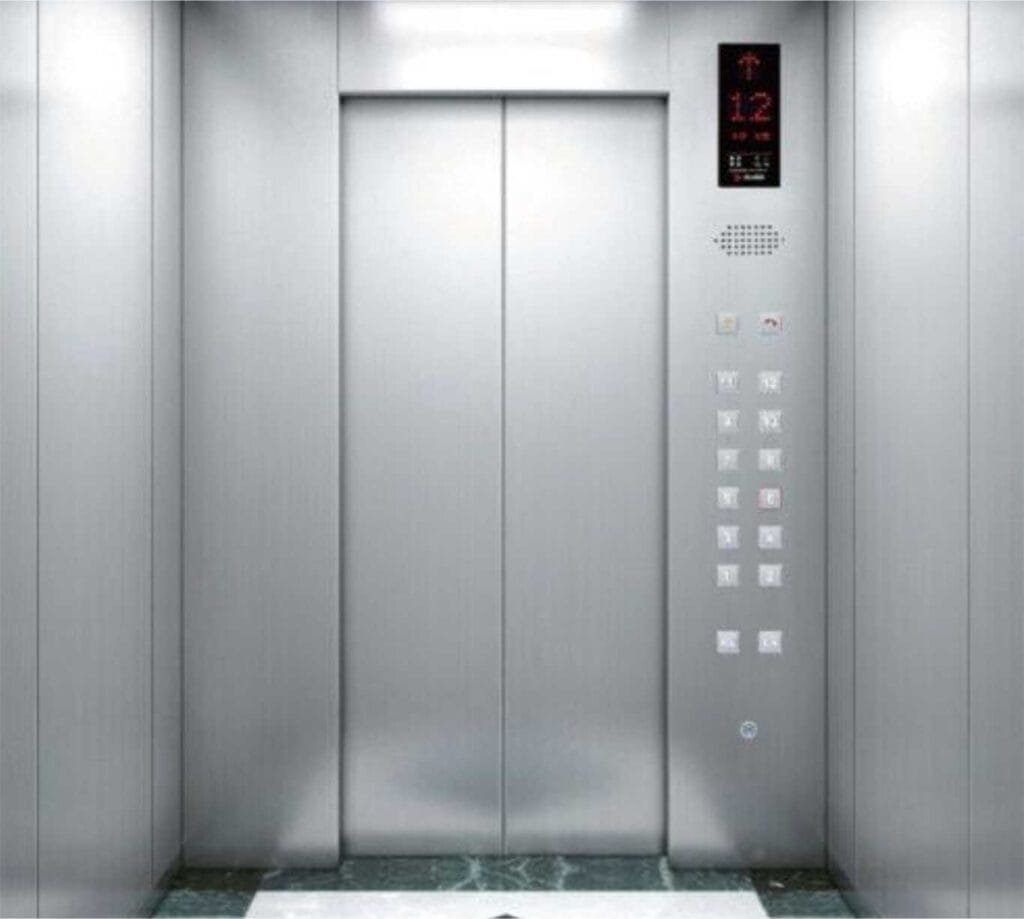

12. Lift Pit:
Construction of Lift Pit, shaft and supply of electric power to Lift,
will be provided if required
13. Electrical Work:

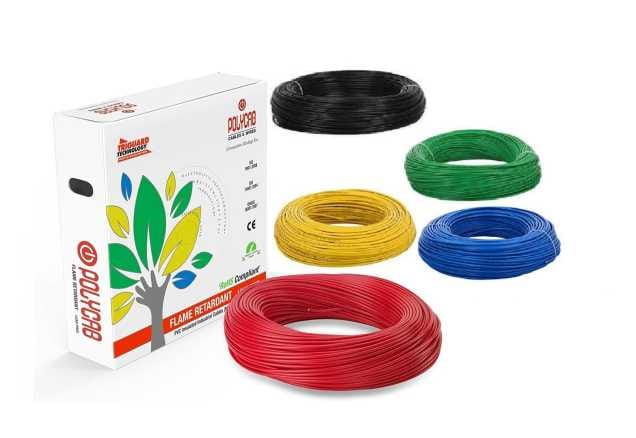

Polycab wires of ISI brand: Lighting circuit with 3/22 copper wire and Heating circuit with 7/20 copper wire
Pipes: ISI Branded Pipes
Switches and Switch Plates: Anchor Roma Brand

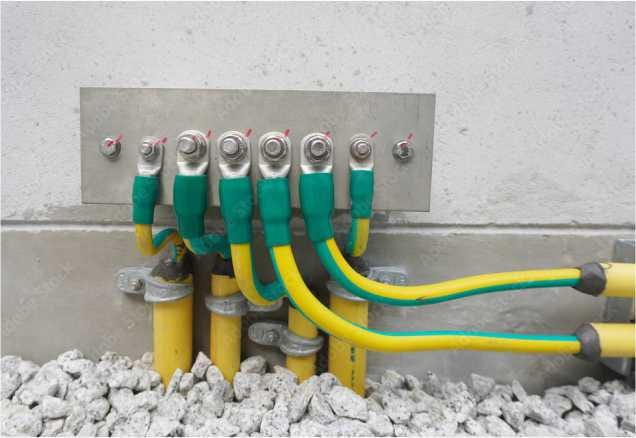

Earthing For Lighting & Heating Points, Along with Earthing Pit

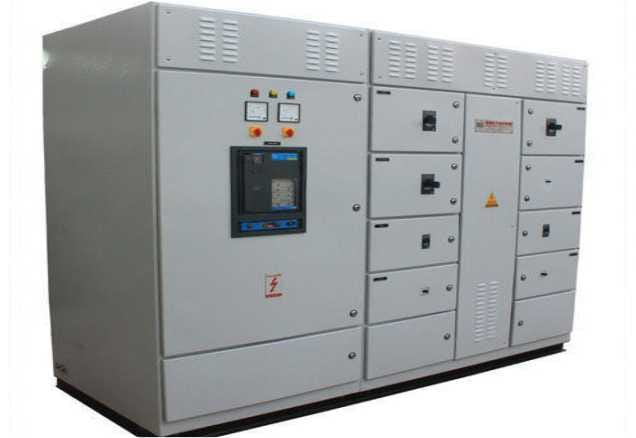

Legrand DB and MCB
for each Flat

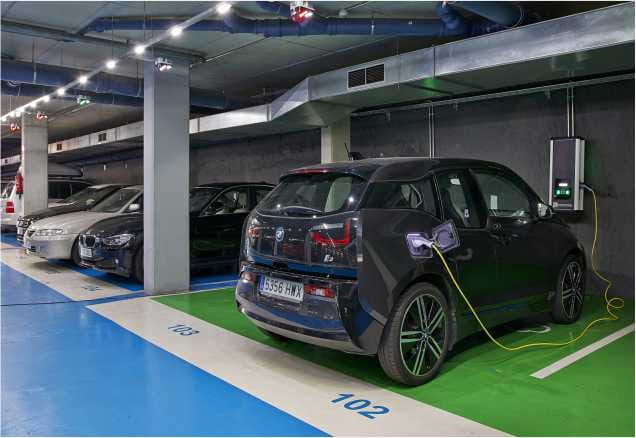

Providing Car charging point
at parking area
14. Plumbing Works & Sanitary Work:

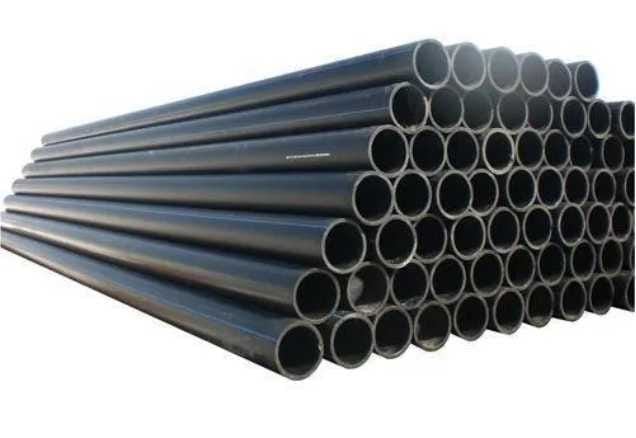

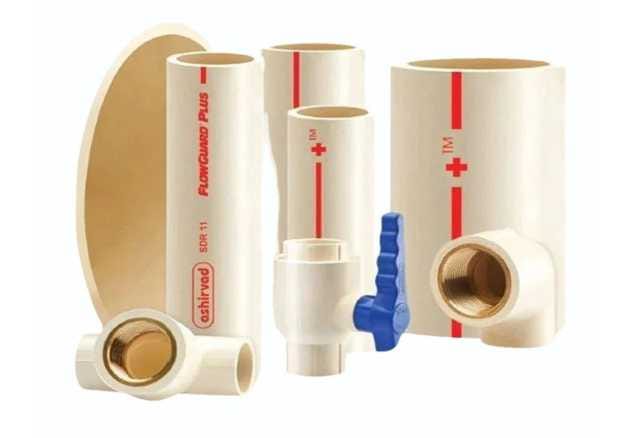

Water Supply Pipes:
CPVC Ashirwad, ISI Make
for inner and outer side

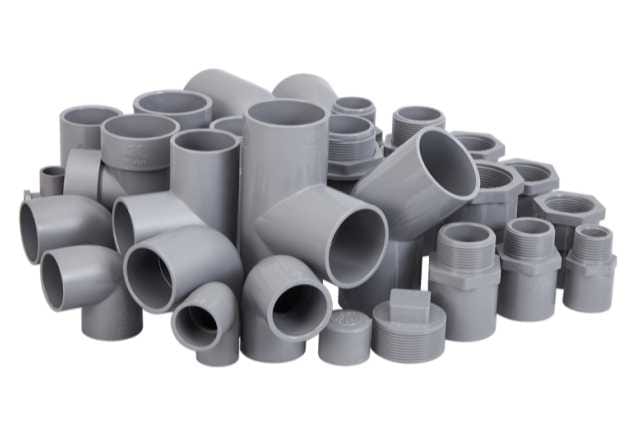

Sanitary Pipes: PVC Supreme, ISI Make 4kg/sqcm and Sanitary Chamber pipe line with 6kg/sqcm
Over head Tank: Three Layers of Kaveri PVC
2 No of 1,000 liter each

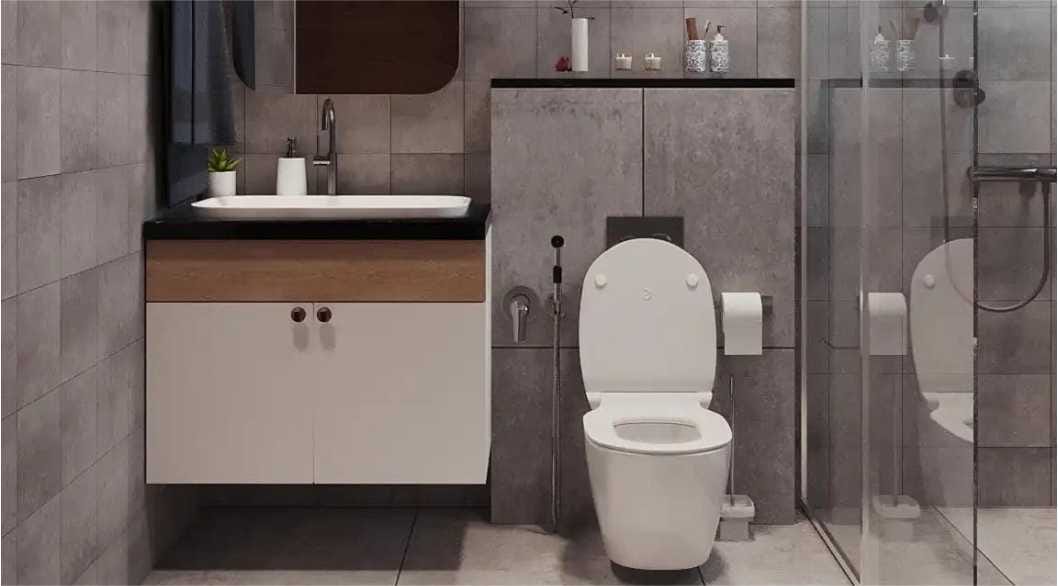

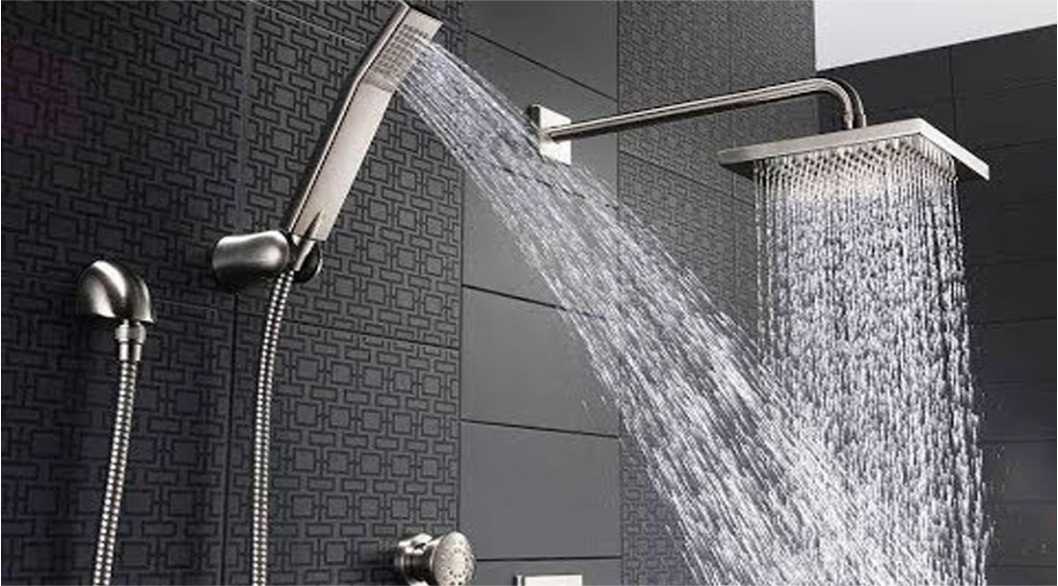

Jaguar Make CP Fittings

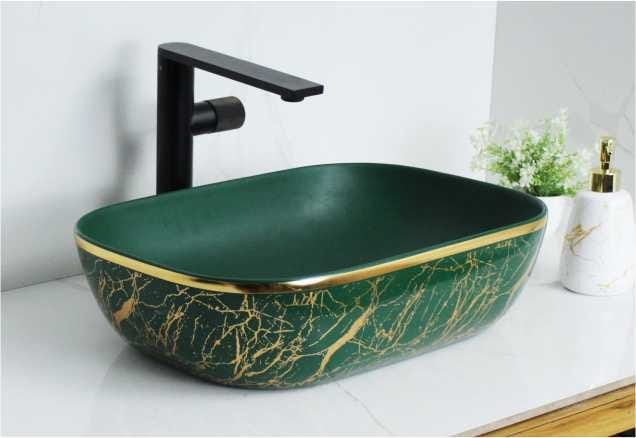

Parryware Make Sanitary Fittings
Total up to 20,000/- per Bath Room
16. Kitchen and Dining:

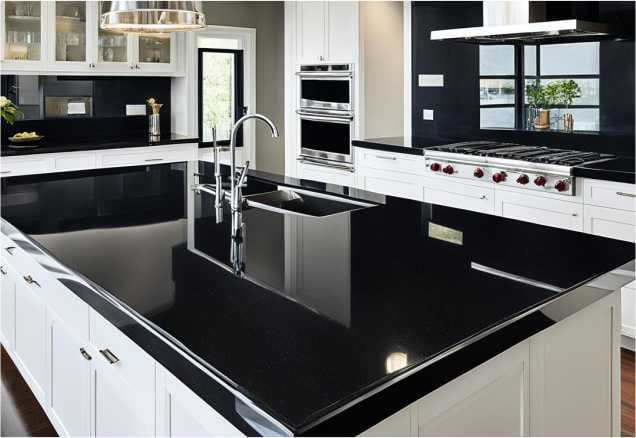

Kitchen Platform: Jet Black, 40mm Granite Slab. (Basic price up to Rs. 130/Sft.)
Wash basin Platform: Jet Black, 40mm Granite Slab Bull nose edges. (Basic price up to Rs. 130/Sft.)

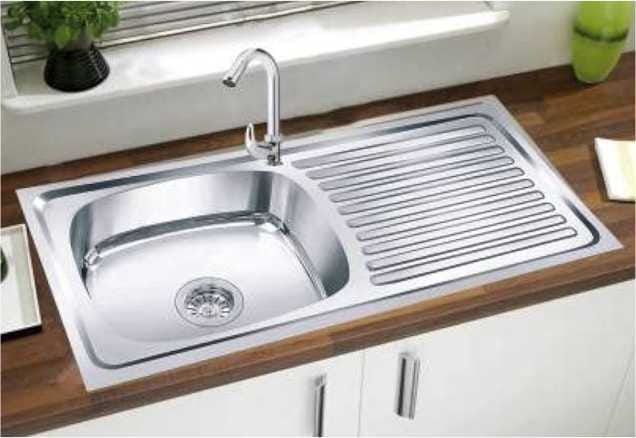

Kitchen Sink: Stainless Steel Sink with drain. (Basic price up to Rs. 2500/No.)
17. Networking:

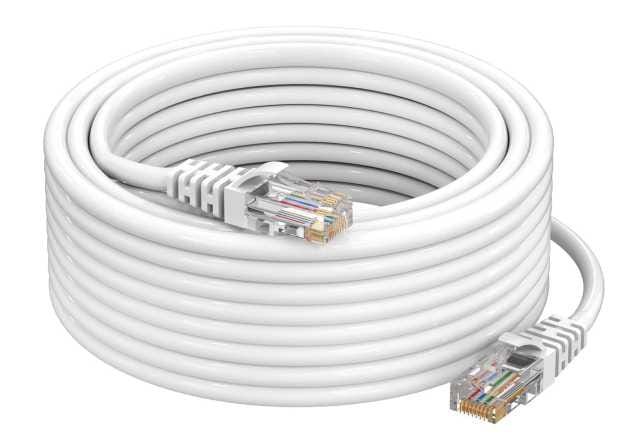

Internet Lan Cable: Providing Internet Lan cable For Hall and Bedrooms, to connect Smart Tv and Desktop Computers

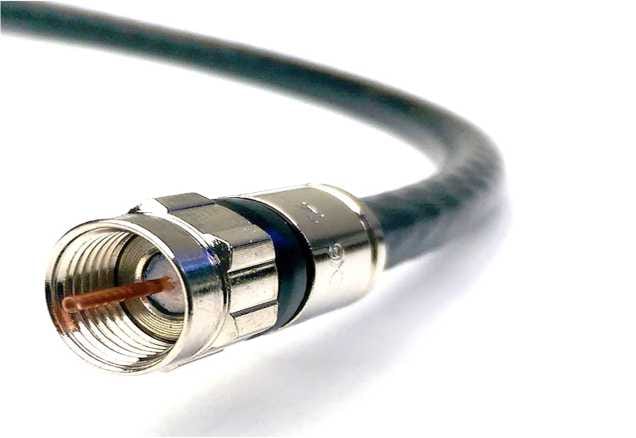

DTH Cable: Providing DTH cable For Hall and Bedrooms, to connect Smart TV.
